2-WAY BALL VALVES
FLOATING BALL & TRUNNION MOUNTED BALL

2-Way Ball Valves

Floating ball

The 2-way ball valves with floating ball are designed with a 2- or 3-piece body.
The floating design creates a tightness on the outlet side which increases further with an increase of the pressure on the upstream side.

Info sheet

  • According to DGRL or international standards, such as ASME B16.34 or API 608
  • Metallic, soft or carbon sealing
  • 2- or 3-piece body design
  • TA-Air proved according to VDI 2440 and Fugitive Emission DIN ISO 15848-1
  • Anti-blow out stem and Anti-static device
  • Actuator connection according to DIN/ISO 5211
  • Flange connection according to DIN/ASME/JIS, butt-weld-ends or according to customer requirement
  • 100% Pressure and tightness test according to various international Standards
  • 100% Function test

Our ball valves can be adapted virtually to any customer request.

Here are a few examples:

  • Reduced bore
  • Special materials
  • Low temperature version down to -196 ° C
  • High temperature version up to +800 ° C
  • Double Block and Bleed / DIB 1
  • Double Isolation and Bleed / DIB 2
  • reduced cavity area between body and ball by cavity fillers (PTFE, PEEK or metal)
  • Heating jacket
  • piggable
  • Painting acc. to customer requirements
  • Special tests such as PMI, cryogenic, fire-safe, helium leak and dye penetrant test DPE

Are you looking for a special ball valve?

Our skilled sales team will be pleased to advise you on any technical options.

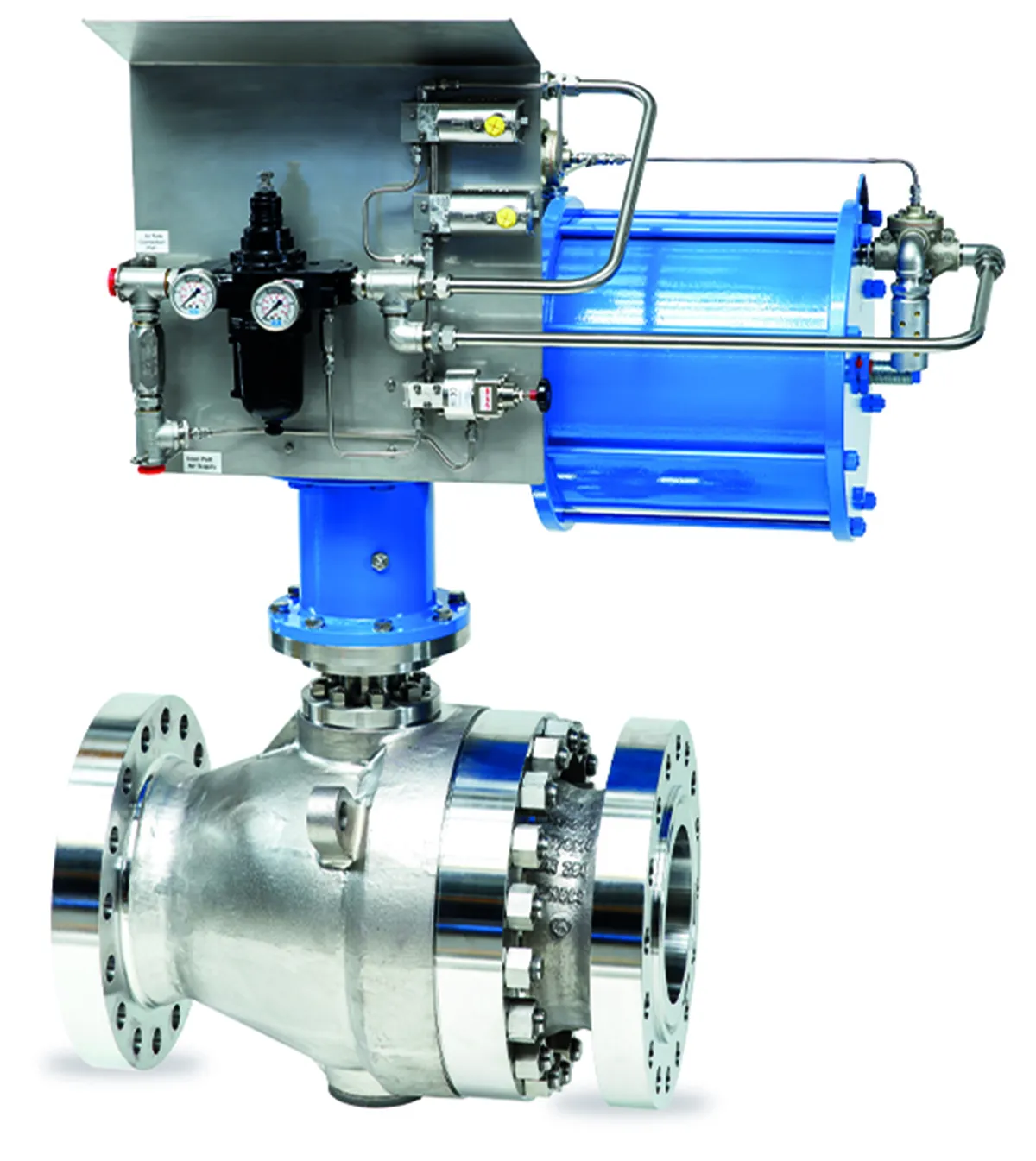

2-Way Ball Valves

Trunnion mounted ball

The mounted 2-way ball valves are designed with a 2- or 3-part housing. Spring-loaded seat rings are used for sealing. Due to the absorption of the forces via the bearing journal and the control shaft, the bearing-mounted ball valve not only has lower torques compared to the floating versions, but can also be used with large nominal diameters and pressure ratings.
As standard, these are sealing on the inlet side and can also be supplied as “Double Block and Bleed (DBB)” or “Double Isolation and Bleed (DIB)” versions on request.

Info sheet

  • Design according to PED or international standards, e.g. ASME B16.34 or API 608
  • Metal-, soft- or carbon sealing
  • 2- or 3-piece body
    TA-Luft tested according to VDI 2440 and Fugitive Emission DIN ISO 15848-1
  • Trol shaft blow-out proof and anti-static design
  • Actuator connection according to DIN/ISO 5211
  • connection according to DIN/ASME/JIS design, welding ends or according to customer requirements
  • 100% pressure and leak test according to various international standards
  • 100% function test

Our ball valves can be adapted virtually to any customer request.

Here are a few examples:

  • Reduced bore
  • Special materials
  • Low temperature version up to -196°C
  • High temperature version up to +800°C
  • Double-Block-and-Bleed / DIB 1
  • Double-Isolation-and-Bleed / DIB 2
  • reduced cavity area between body and ball by cavity fillers (PTFE, PEEK or metal)
  • Heating jacket
  • Piggable
  • Painting according to customer requirements
  • Special tests like PMI, Cryogenic-Test, Fire-Safe Test, Helium Leak Test and Dye Penetrant Test DPE
  • Different kind of spring loaded seat design either by coil springs (standard or dust protected), plate springs or Graphite pre-loaded
